Alerts

What is an Alert?

  • An alert should represent an actionable issue that needs user interaction.
  • Alerts will notify users using the alert workflow.
  • Alerts are created by Integrations or Account Users.
  • Alerts have one or more "destinations". An alert destination can be a Team, Account User, or Router.

User Interface

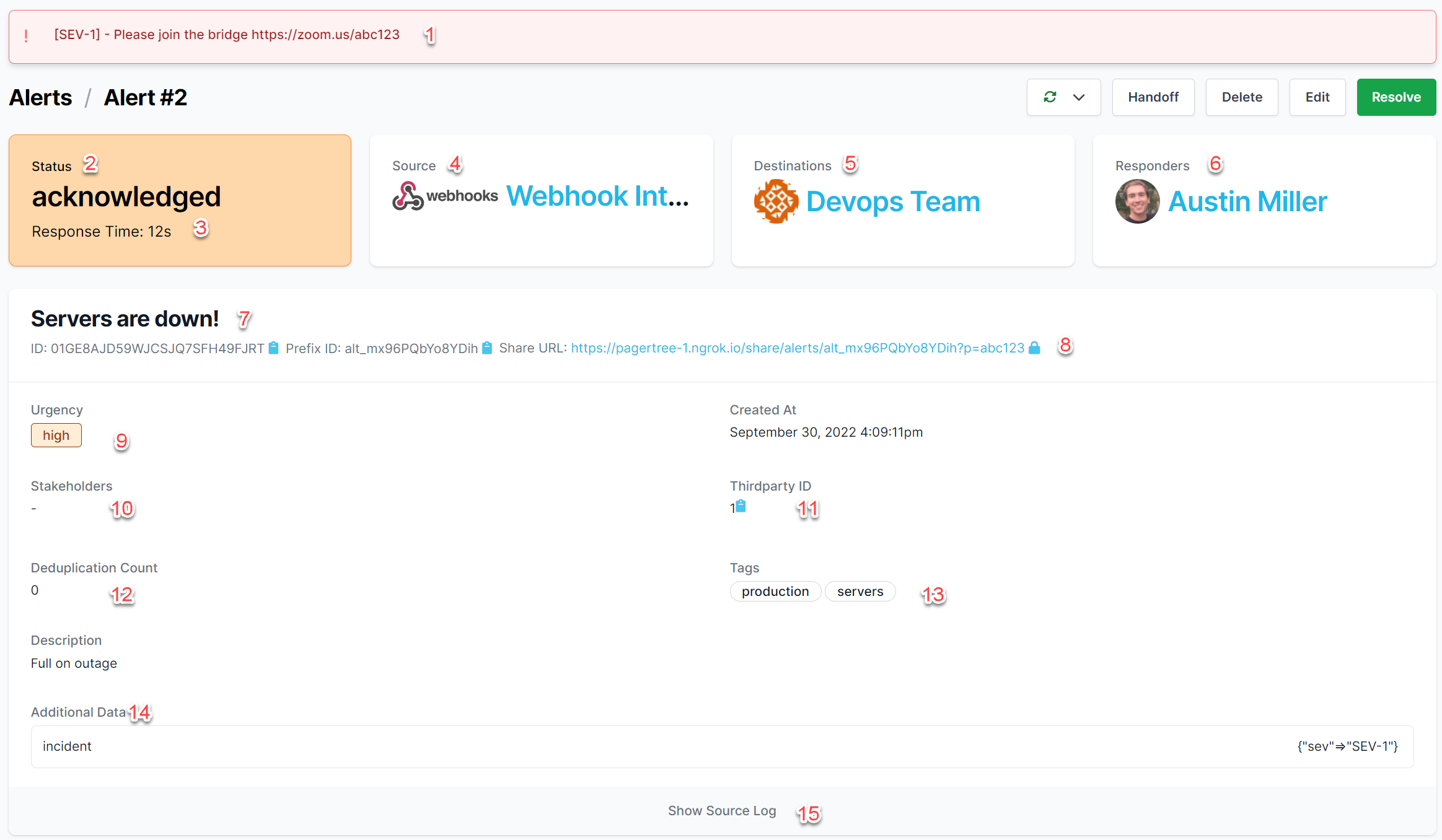

annotated alert information
Annotated Alert Information
Annotation #
Alert Property
Description
1
Incident Banner
If the alert is an incident, will show severity and special message.
2
Status
queued|open|acknowledged|resolved|dropped - The current state of the alert. See alert states
3
Response Time
The difference between when the alert was first created and when it was first acknowledged. (does not reset on a handoff)
4
Alert Source
Integration or Account user that created the alert.
5
Destinations
Teams and Routers the alert was sent to.
6
Responders
Users that have acknowledged this alert.
7
Title
Should be concise and descriptive. It shows up on all notification channels
8
Public Url
The public shareable URL to this alert (default: disabled)
9
Urgency
low|medium|high|critical - Determines the push notification priority and can affect routers and notification rules.
10
Stakeholders
Any stakeholders that are attached to the alert
11
Third Party ID
The unique identifier that maps this alert with and object in a 3rd party system
12
Deduplication Count
An incrementing integer. Will increase if the Integration tries to create an alert with the same Third Party ID, another alert is created with the same
13
Tags
Any tags that are attached to the alert. Alerts can then be searched by the tags on the alerts page.
14
Additional Data
If created by an integration, additional data that was extracted by the integration.
15
Source Log
If created by an integration, the source log that created this alert.

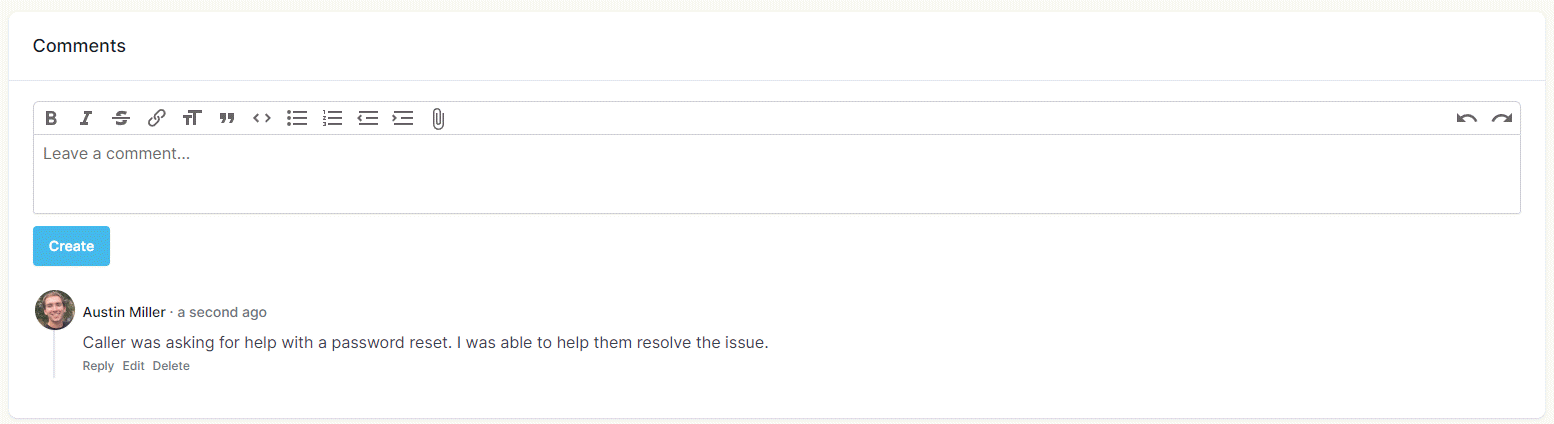

Comments

Account users can comment on the alert. Comments are meant for human conversation.
alert comments
Alert Comments

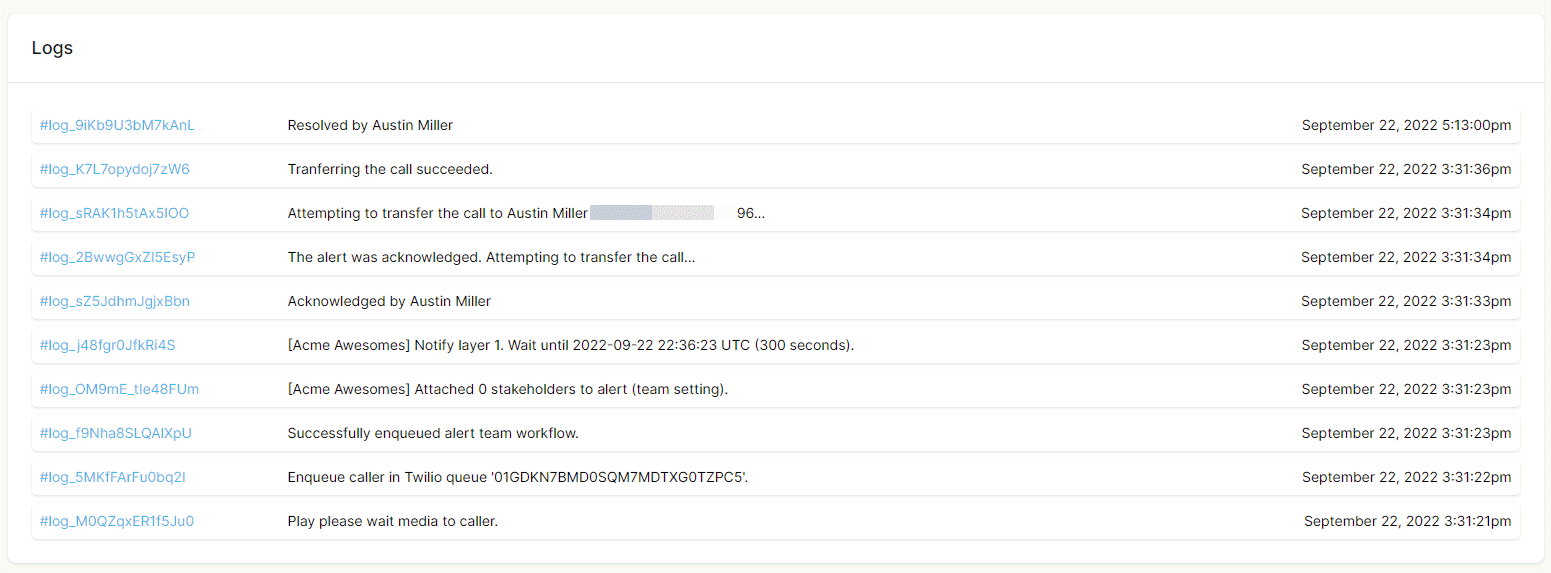

Logs

Alert logs are created by PagerTree to document what happened during the alert's lifecycle.
alert logs
Alert Logs

Alert Actions

Acknowledge

Acknowledging an alert indicates that the person acknowledging the alert will be responsible for addressing the alert. If the person is not able to adequately resolve the issue themselves, it is their responsibility to gather others who can help take this alert to resolution. The acknowledging user could also handoff the alert to another Account User or Team who could better address the alert.
To acknowledge an alert, the alert must be in the open status.

Methods to Acknowledge

Channel
Directions
mobile app
Tap the push notification. On the alert page, click the acknowledge button.
email
Click the acknowledge button.
sms
Reply A.
voice
Push 1.
slack
Click the acknowledge button.
web ui
Click the acknowledge button.

Reject

Rejecting an alert indicates that the person rejecting the alert cannot address the alert at the current time. (ex: The rejecting user is stuck in traffic.)
To reject an alert, the account user must have an open alert workflow.

Methods to Reject

Channel
Directions
mobile app
Tap the push notification. On the alert page, click the reject button.
email
Click the reject button.
sms
Reply R.
voice
Push 2.
slack
Click the reject button.
web ui
Click the reject button.

Resolve

Resolving an alert indicates that the alert has been fully fixed (aka "resolved").
To resolve an alert it must be in the acknowledged state. Resolving an alert can only be done via the mobile app and web ui.
Integrations can auto-resolve alerts. In this case, an alert can go from open -> resolved directly.

Methods to Resolve

Channel
Directions
mobile app
Tap the push notification. On the alert page, click the resolve button.
web ui
Click the resolve button.

Handoff

You many handoff the alert to another Team or Router once the alert is in the acknowledged state. Handing off an alert can only be done via the mobile app or web ui.

Methods to Handoff

  1. 1.
    In the top right of the alert page, Click Handoff.
  2. 2.
    On the Alert Handoff form:
    1. 1.
      Select a new destination for the alert.
    2. 2.
      Provide a brief note as to why you are handing it off.
  3. 3.
    Click Handoff.

Incident

Marking an alert as an incident communicates to your team members this alert is a greater degree of severity than a normal alert. It can be causing an outage or even customer facing. An incident represents a problem or an issue that needs to be addressed an resolved immediately.
  • Severity - Communicates the impact of an incident (see below).
  • Incident Message - A short message to be displayed at the top of the alert page (ex: "Please join the war room https://zoom.us/123")
alert incident banner
Alert Incident Banner

Severities

The incident severity level communicates the impact of the incident. It will be displayed on notification channels and in a red banner on top of the alert page.
If you are unsure which level an incident is (e.g. not sure if SEV-2 or SEV-1), treat it as the higher one (SEV-1).
Level
Description
SEV-1 (highest)
Critical issue that warrants public notification and liaison with executive teams.
SEV-2
Critical system issue actively impacting many customers' ability to use the product.
SEV-3
Stability or minor customer-impacting issues that require immediate attention from service owners.
SEV-4
Minor issues requiring action, but not affecting customer ability to use the product.
SEV-5 (lowest)
Cosmetic issues or bugs, not affecting customer ability to use the product.
SEV-UNKNOWN
Impact currently unknown (can be updated in the future)

Alert States

State
Description
queued
Initial state of an alert. At this point, the alert has not been routed to any destinations.
open
The alert has been routed to its first destination. It has an open workflow and waiting to be actively acknowledged.
acknowledged
The alert has been acknowledged by all destinations.
resolved
The alert has been marked as resolved by a user or integration.
dropped
The alert was dropped because there was no one on-call or the users that were on-call did not acknowledge the alert.

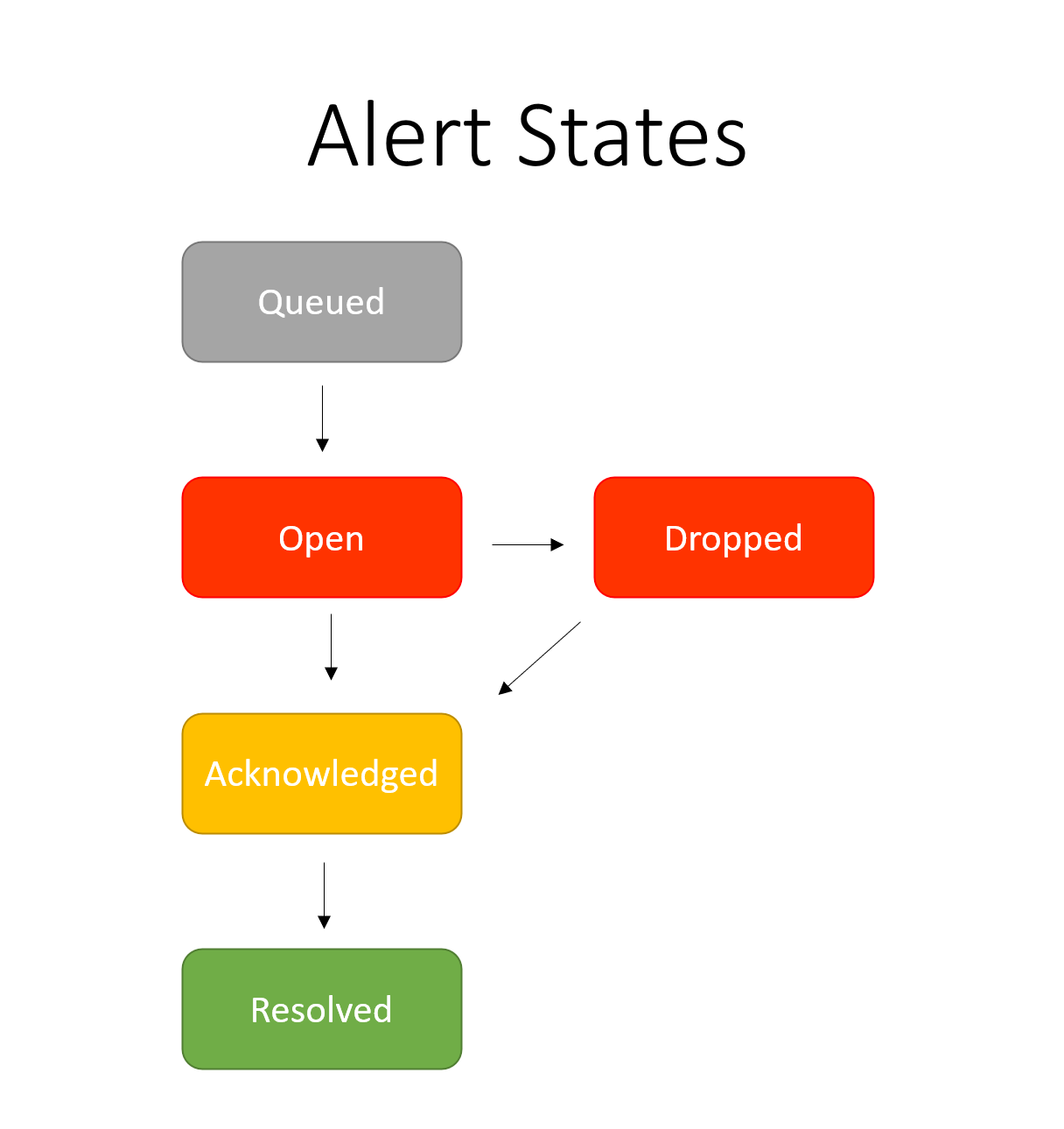

alert states
Alert States

FAQs

Question
Answer
Who can create an Alert?
Any account user or integration may create an alert.
What does the urgency mean / do ?
The alert urgency determines the push notification priority and can affect routers and notification rules.
