  1. Integration Guides

Grafana

Connect your Grafana alerts to PagerTree.

PreviousGoogle Hangouts ChatNextHealthchecks.io

Last updated 1 year ago

Was this helpful?

Company
Estimated Time
Vendor Docs
Open Source

10 minutes

What is Grafana?

is the open platform for beautiful analytics and monitoring.

How It Works

Grafana triggers user defined alerts by monitoring time series metrics.

  • When an alert is triggered ('alerting' state) in Grafana, an alert is created in PagerTree automatically.

  • When the alert is resolved ('ok' state) in Grafana, the alert is resolved in PagerTree automatically.

Integration Walkthrough

In this integration tutorial we will show you how to send alerts from Grafana into PagerTree. The estimated time for this integration is 10 minutes. We assume that you already have a PagerTree account and Grafana setup.

In PagerTree

  1. by clicking the Grafana logo.

  2. .

In Grafana

Create a Notification Channel

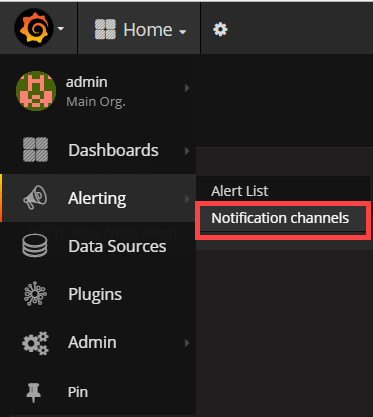

  1. Click Menu -> Alerting -> Notification Channels

  2. Click the ”+ New Channel” button

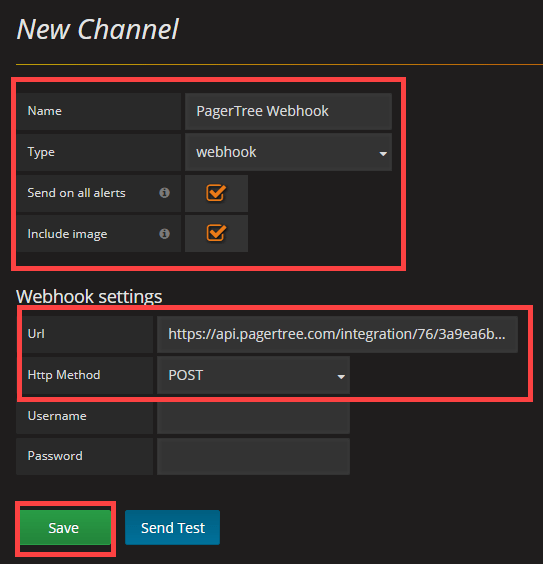

  3. On the New Channel Form

    1. Name - An appropriate Name (example: PagerTree Webhook)

    2. Type - webhook

    3. Send on all alerts - checked

    4. Include image - checked

    5. URL - Paste the PagerTree Endpoint URL you copied

    6. Http Method - POST

  4. Click the Save button

Create an Alert

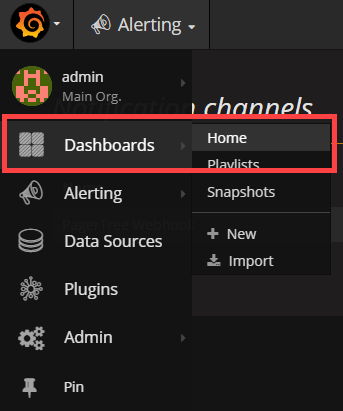

  1. Click Menu -> Dashboards -> Home

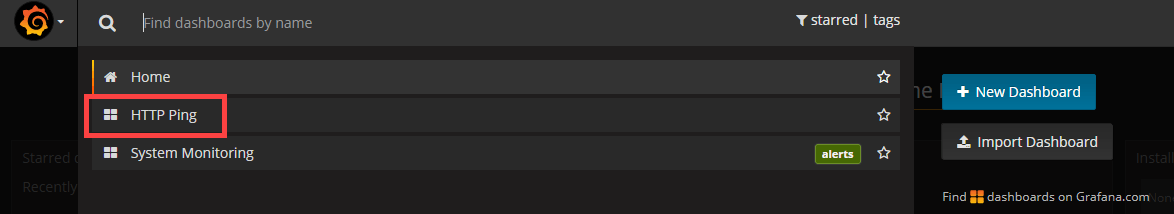

  2. Click -> Home then select the dashboard that has a metric you would like to alert on.

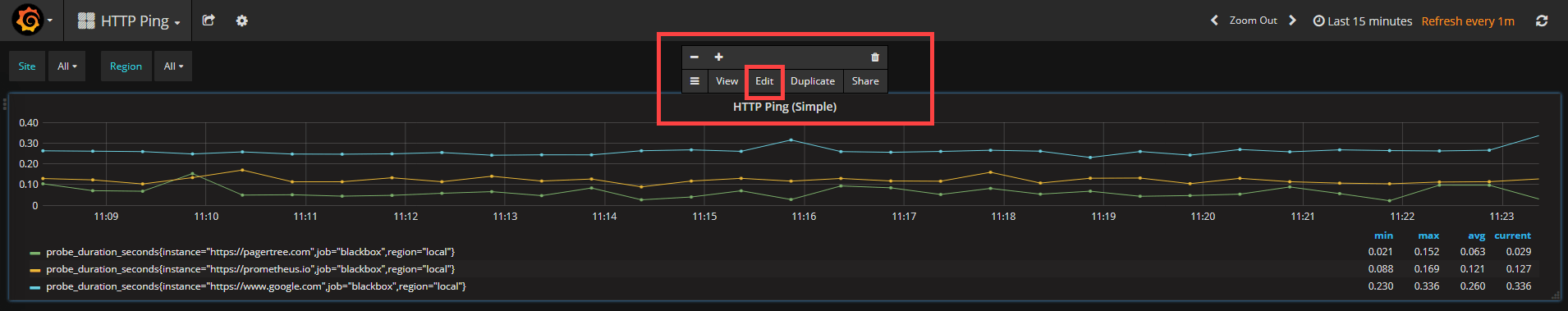

  3. Click the component you would like to add the alert to

    1. Click “Edit”

    2. Click the Alert Tab

    3. Click the “Create Alert” button

    4. Configure the appropriate parameters under Alert Config

    5. Click the Notifications Tab

      1. Ensure Send to has the PagerTree Webhook channel selected

  4. Click the Save Icon at the top of the page to save the dashboard

You have successfully completed the Grafana Integration.


Grafana Labs
view
v3.rb
Grafana
Create the integration
Copy the Endpoint URL
Navigate to Notification Channels.
Click the New Channel button.
Grafana PagerTree Channel Configuration
Navigate to your dashboard home.
Select a dashboard.
Click the "Edit" tab.
Click the "Create Alert" button.
Configure the Alert to send to the PagerTree Webhook.
Click the "Save" icon.
