SolarWinds

Connect your SolarWinds alerts to PagerTree.

Company	Estimated Time	Vendor Docs	Open Source
SolarWinds Worldwide, LLC	10 minutes	view	v3.rb

What is SolarWinds?

SolarWinds gives you the tools to monitor your applications and environment through a single web console.

How It Works

SolarWinds triggers user defined alerts when (configured) network events occur.

• When an alert in SolarWinds is triggered, an alert is created in PagerTree automatically.

• When an alert in SolarWinds is reset, the alert is resolved in PagerTree automatically.

Integration Walkthrough

In this integration tutorial we will show you how to send alerts from SolarWinds into PagerTree. The estimated time for this integration is 10 minutes. We assume that you already have a PagerTree account and SolarWinds installation setup.

In PagerTree

1. Create the integration by clicking the SolarWinds logo.

2. Copy the Endpoint URL.

In SolarWinds

1. Navigate to Alerts & Activity -> Alerts.

2. In the upper right hand corner, click the Manage Alerts button to go to the Alert Manager.

3. In Alert Manager click Add New Alert.

4. In the Add New Alert Wizard

   1. Properties

      1. Name of the alert definition - An appropriate name (e.g. High CPU)

      2. Choose the severity of the alert. (PagerTree automatically maps the SolarWinds severity to the PagerTree urgency)

      3. Click Next

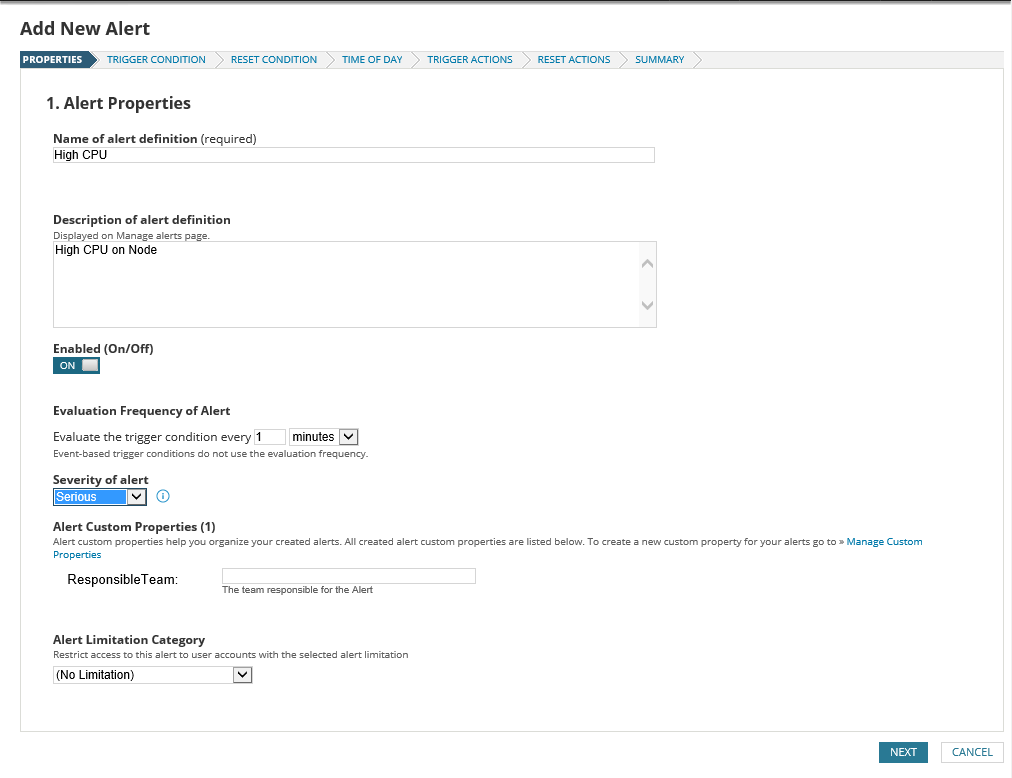

         SolarWinds Alert Properties
   2. Trigger Condition

      1. Select conditions that will trigger an alert (create an alert)

      2. Click Next

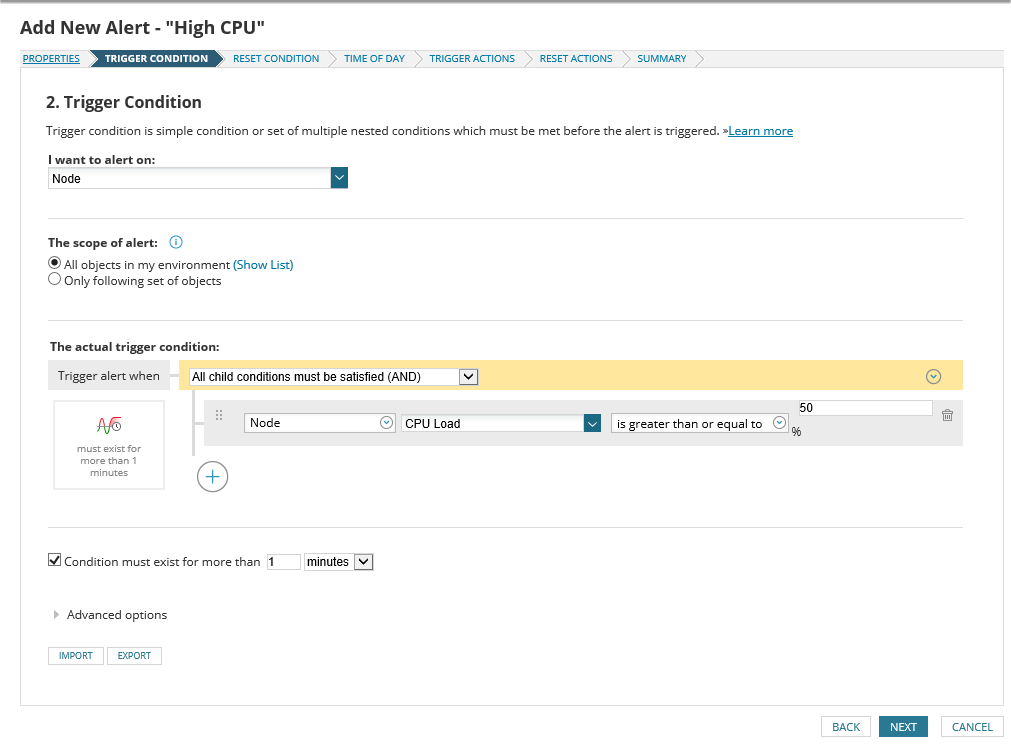

         SolarWinds Trigger Condition
   3. Reset Condition

      1. Select conditions that will reset and alert (resolve and alert)

      2. Click Next

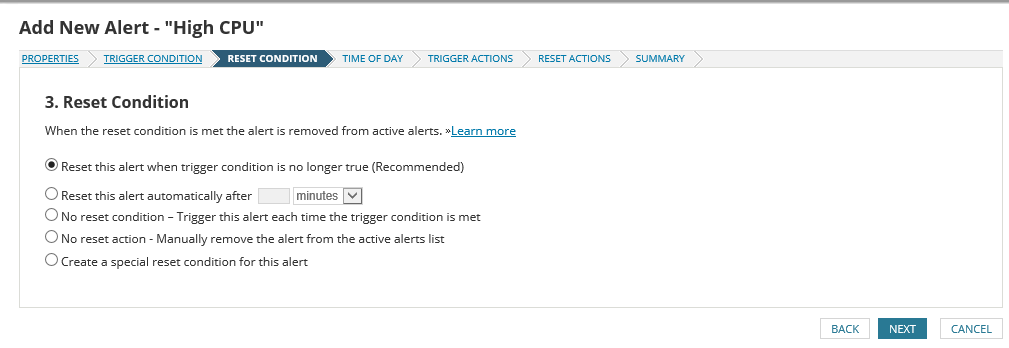

         SolarWinds Reset Condition
   4. Time of Day

      1. Select time of day conditions (if only applicable during certain times)

      2. Click Next

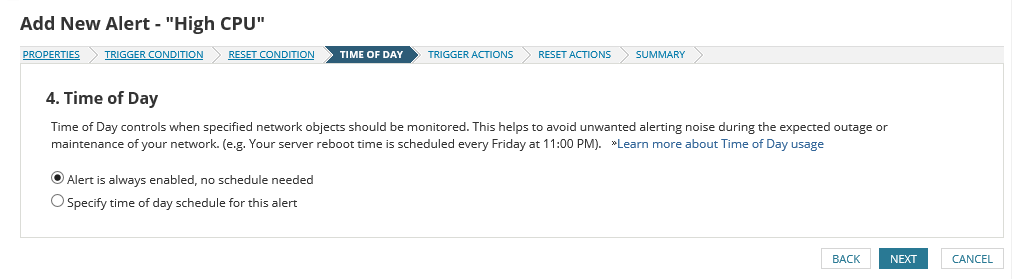

         Solarwinds Time of Day

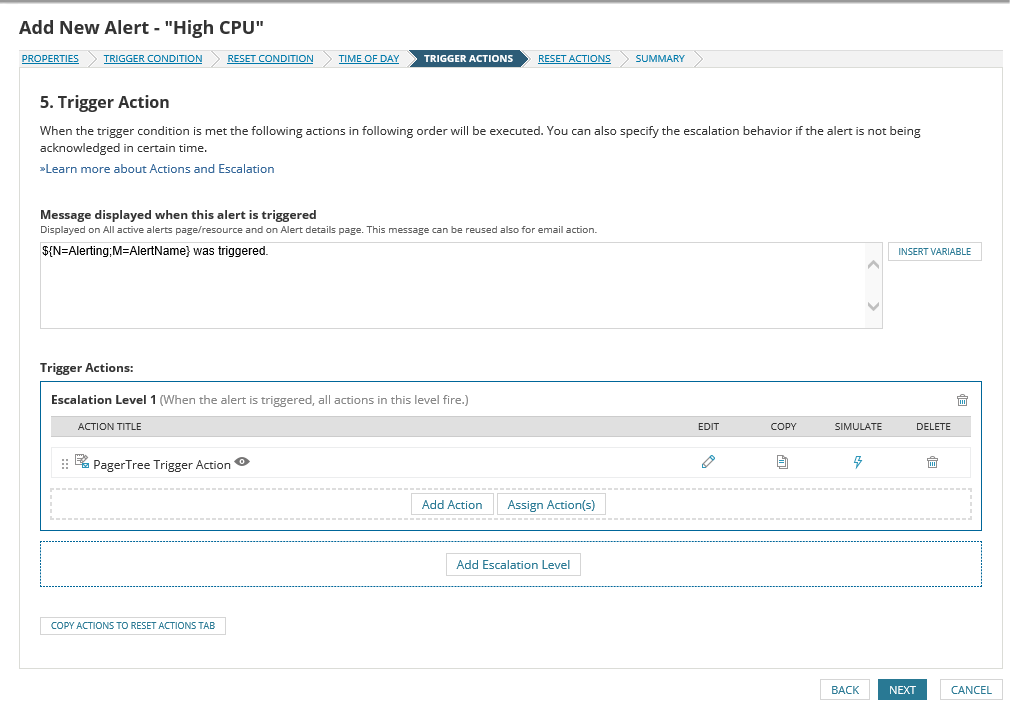

   5. Trigger Action

      1. Message - Create an appropriate message (this will be displayed in the title of the alert created in PagerTree)

      2. Trigger Actions

         1. Click Add Action

         2. Select the Send a GET or POST Request to a Web Server option, then click Configure Action.



            1. Name of action - An appropriate name (e.g. PagerTree Trigger Action)

            2. Under HTTP request settings:

               1. Paste the PagerTree Endpoint URL you copied for the URL

               2. Select Use HTTP/S POST

               3. Body to POST - copy and paste the solarwinds_action_payload (below)

               4. Click Add Action

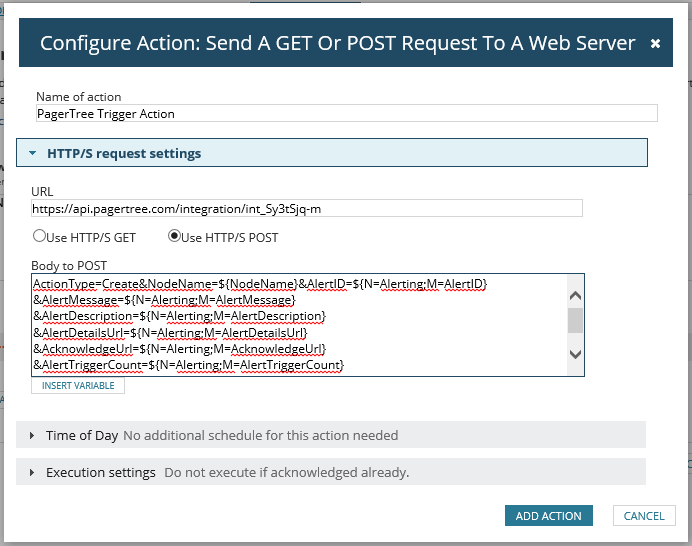

                  Solarwinds PagerTree HTTP/S action configuration.
            3. Click Next


         3. Reset Action

            1. Click Add Action

            2. Select the Send a GET or POST Request to a Web Server option, then click Configure Action.

               1. Name of action - An appropriate name (e.g. PagerTree Reset Action)

               2. Under HTTP request settings:

                  1. Paste the PagerTree Endpoint URL you copied for the URL

                  2. Select Use HTTP/S POST

                  3. Body to POST - copy and paste the solarwinds_reset_payload (below)

                  4. Click Add Action

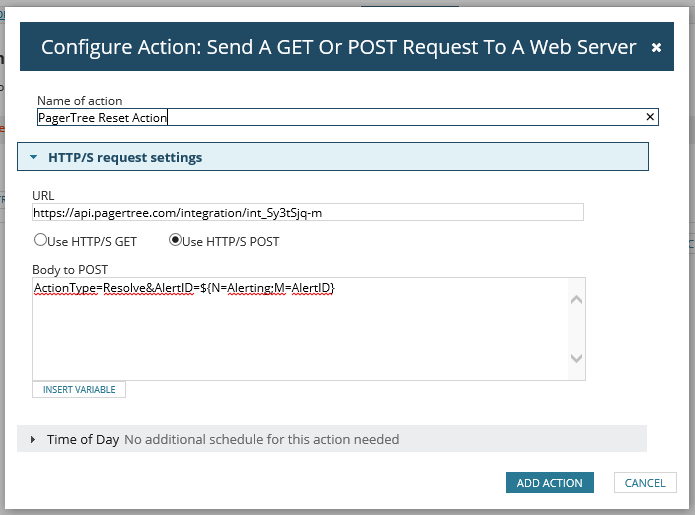

                     Solarwinds PagerTree Reset Action
               3. Click Next

               4. Summary

                  1. Review all configuration details and if correct, click Submit

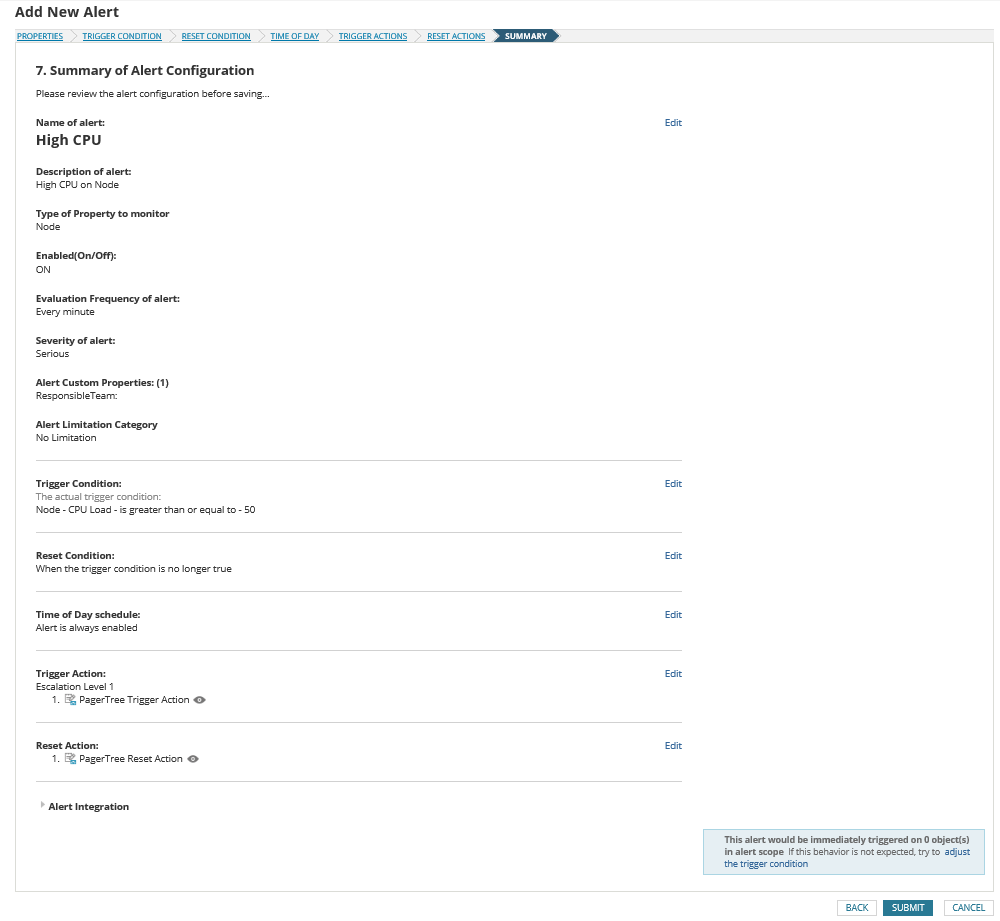

                     Review alert configuration

You have successfully completed the SolarWinds Integration.

SolarWinds Action Payload

solarwinds_action_payload.url

ActionType=Create&NodeName=${NodeName}&AlertID=${N=Alerting;M=AlertID}&AlertMessage=${N=Alerting;M=AlertMessage}&AlertDescription=${N=Alerting;M=AlertDescription}&AlertDetailsUrl=${N=Alerting;M=AlertDetailsUrl}&AcknowledgeUrl=${N=Alerting;M=AcknowledgeUrl}&AlertTriggerCount=${N=Alerting;M=AlertTriggerCount}&AlertTriggerTime=${N=Alerting;M=AlertTriggerTime;F=DateTime}&Severity=${N=Alerting;M=Severity}

If you prefer JSON, make sure to set the Content-Type to "application/json" and use this body payload instead:

solarwinds_action_payload.json

{
    "ActionType": "Create",
    "NodeName": "${NodeName}",
    "AlertID": "${N=Alerting;M=AlertID}",
    "AlertMessage": "${N=Alerting;M=AlertMessage}",
    "AlertDescription": "${N=Alerting;M=AlertDescription}",
    "AlertDetailsUrl": "${N=Alerting;M=AlertDetailsUrl}",
    "AcknowledgeUrl": "${N=Alerting;M=AcknowledgeUrl}",
    "AlertTriggerCount": "${N=Alerting;M=AlertTriggerCount}",
    "AlertTriggerTime": "${N=Alerting;M=AlertTriggerTime;F=DateTime}",
    "Severity": "${N=Alerting;M=Severity}"
}

SolarWinds Reset Payload

solarwinds_reset_payload.url

ActionType=Resolve&AlertID=${N=Alerting;M=AlertID}

If you prefer JSON, make sure to set the Content-Type to "application/json" and use this body payload instead:

{
    "ActionType": "Resolve",
    "AlertID": "${N=Alerting;M=AlertID}"
}

Troubleshooting

If you don't see integration logs being generated on the PagerTree side, check the SolarWind log files. Customers with self-managed instances have reported the following types of errors:

• Invalid Root Certificates (TLS)

---
