  1. Integration Guides

Azure Monitor

Connect your Azure Monitor alerts to PagerTree.

PreviousAWS CloudWatchNextCloudflare

Last updated 1 year ago

Was this helpful?

Company
Estimated Time
Vendor Docs
Open Source

10 minutes

What is Azure Monitor?

is a full stack monitoring service in that provides a complete set of features to monitor your Azure resources in addition to resources in other clouds and on-premises.

How It Works

Azure Monitor triggers user defined alerts by watching metrics.

  • When an alert is fired (Fired state) in Azure Monitor, an alert is created in PagerTree automatically.

  • When the alert is resolved (Resolved state) in Azure Monitor, the alert is resolved in PagerTree automatically.

Integration Walkthrough

In this integration tutorial we will show you how to send alarms from Azure Monitor to PagerTree. The estimated time for this integration is 10 minutes. We assume that you already have a PagerTree and Azure account setup. Additionally, we assume you already have some resources available to monitor in your Azure account.

In PagerTree

  1. by clicking the Azure logo.

  2. .

In Azure

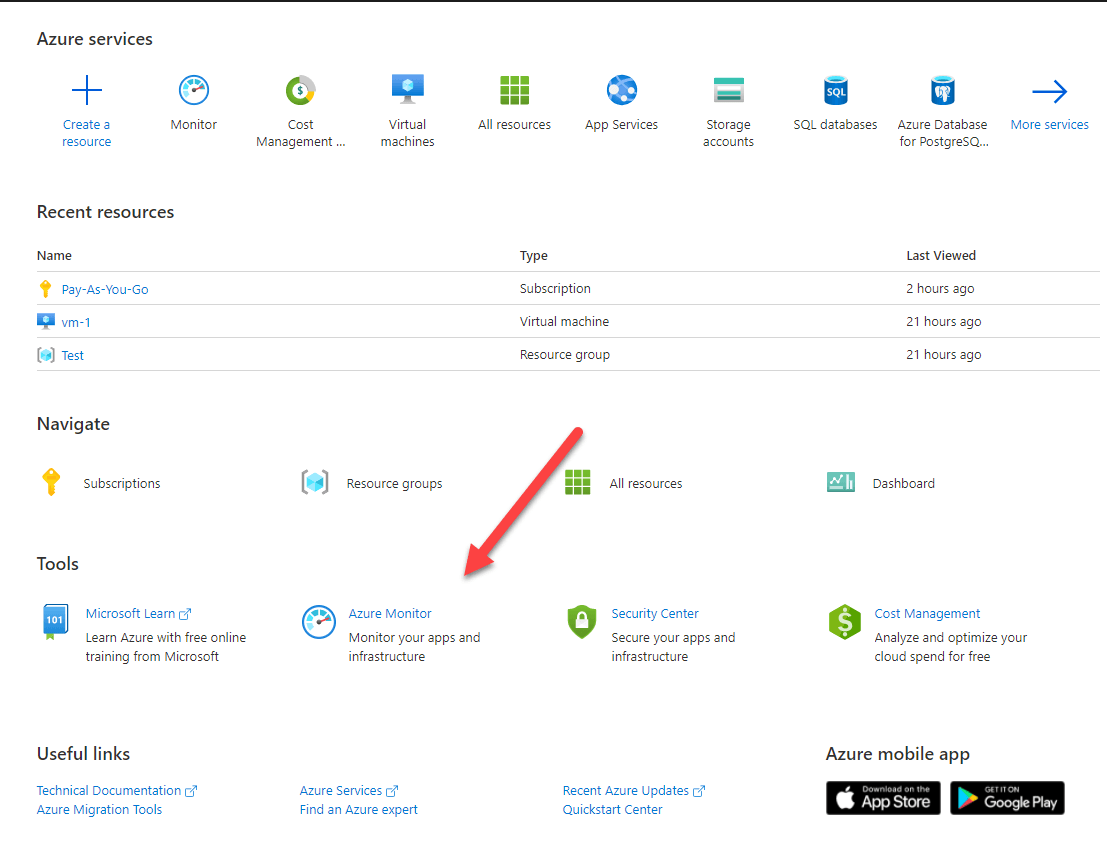

  1. Navigate to Azure Monitor

Create an Action Group

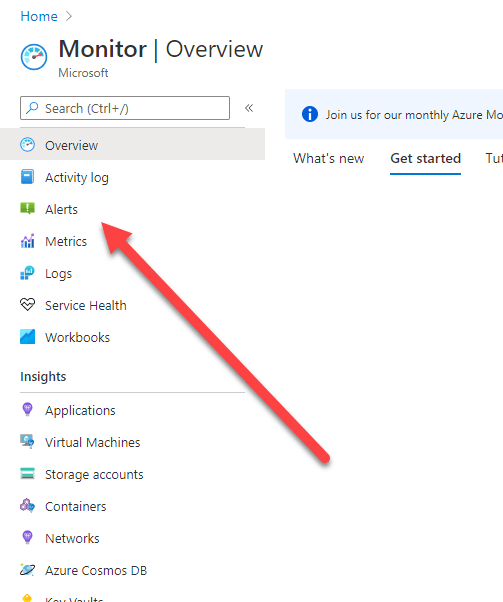

  1. Click the Alerts Tab from the Monitor Navigation.

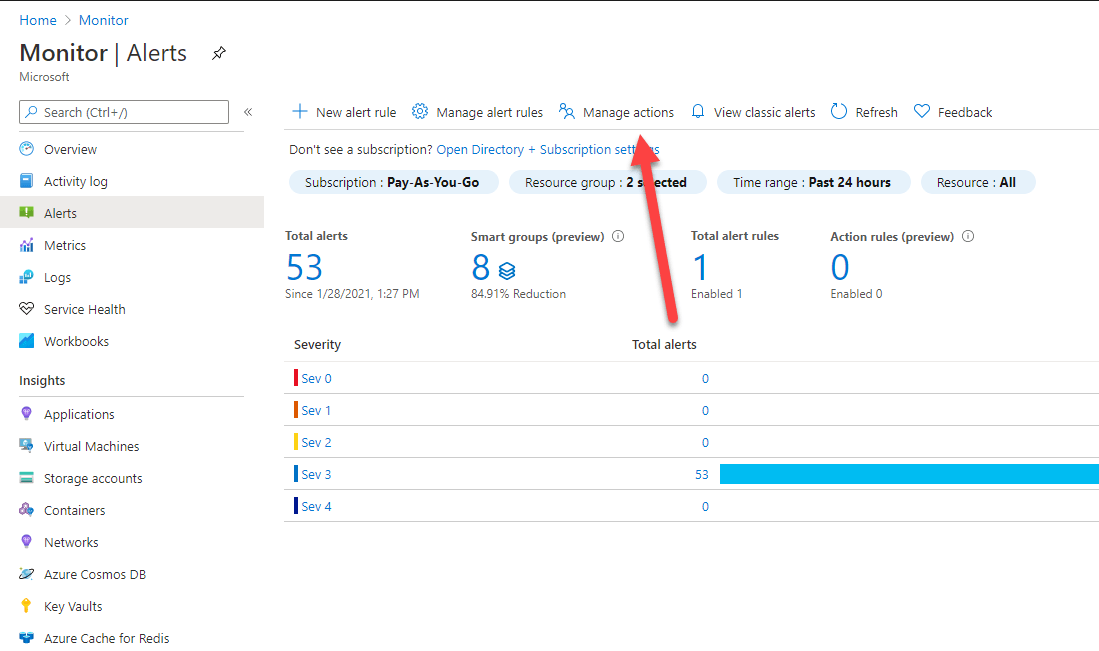

  2. Click the Manage Actions Tab from the Alerts page.

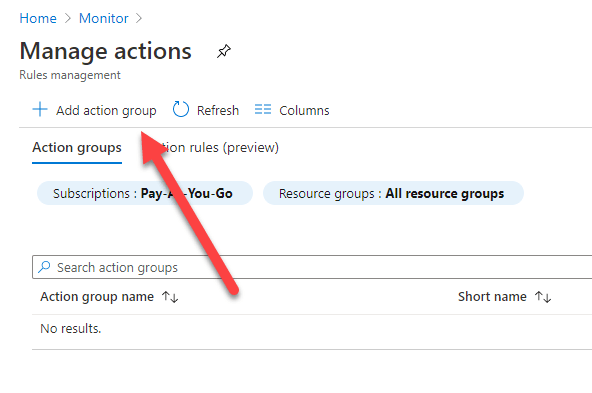

  3. Click the Add action group from the Manage Actions page.

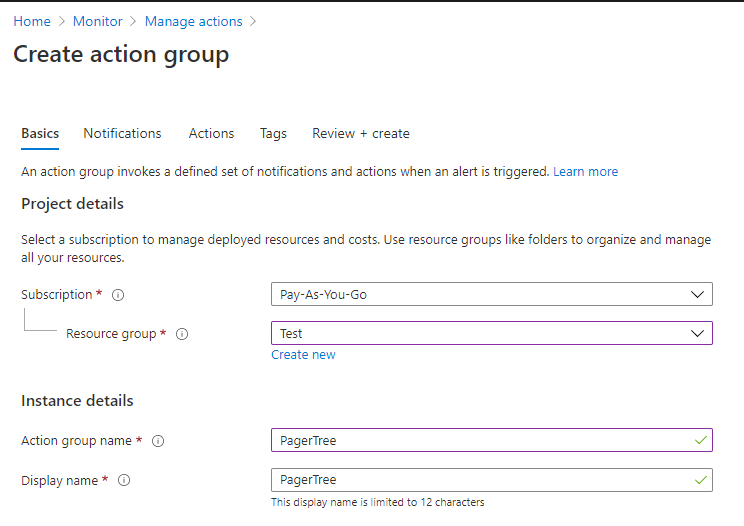

  4. In the create action group form, add the following:

    1. Select an appropriate subscription and resource group to add this action group to.

    2. For the action group name and display name enter PagerTree.

  5. Click the Next: Notifications > button.

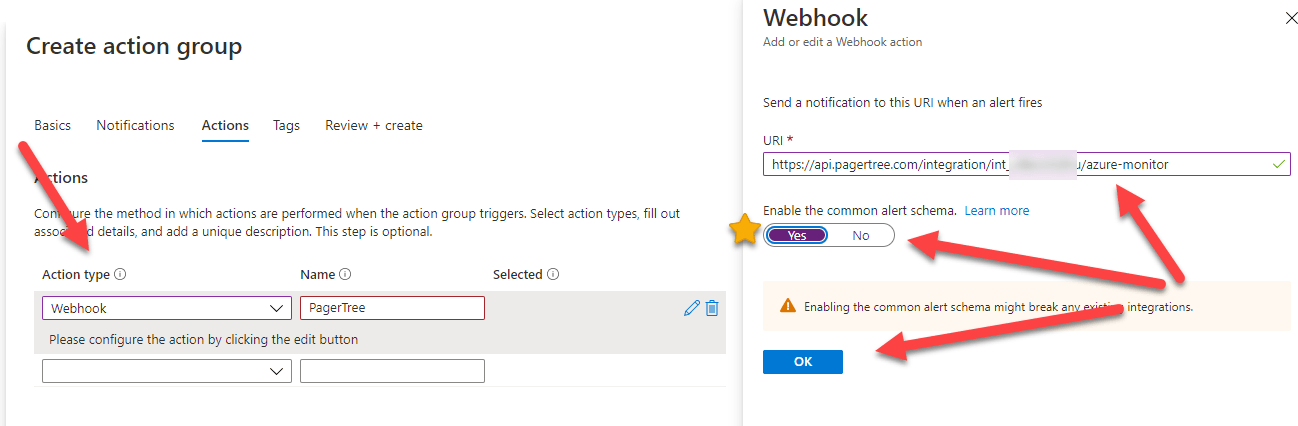

  6. In the actions form, add the following:

    1. Action Type - Webhook

    2. Name - PagerTree

    3. Webhook URI - Paste the PagerTree Endpoint URL you copied earlier

    4. **VERY IMPORTANT** - Enable the common alert schema - Yes

    5. Click OK

  7. Click the Review + Create button.

  8. Click the Create button.

Attach Action Group to Alert Rules

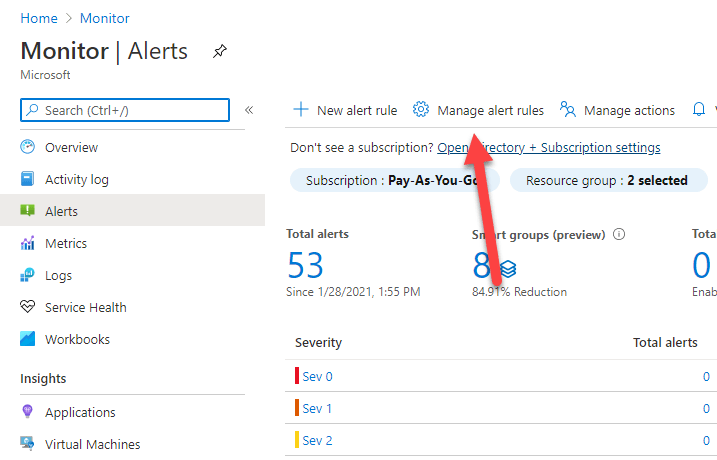

  1. From the Azure Monitor Dashboard, Click the Manage alert rules tab.

  2. If you already have alert rules, you can attach the Action Group directly to your alerts by adding the PagerTree Action Group to the Alert Rule Actions. If you don’t have any Alert Rules yet, follow the steps below:

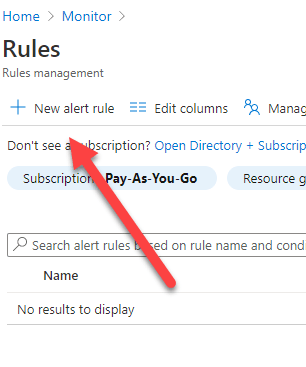

    1. Click the + New alert rule button

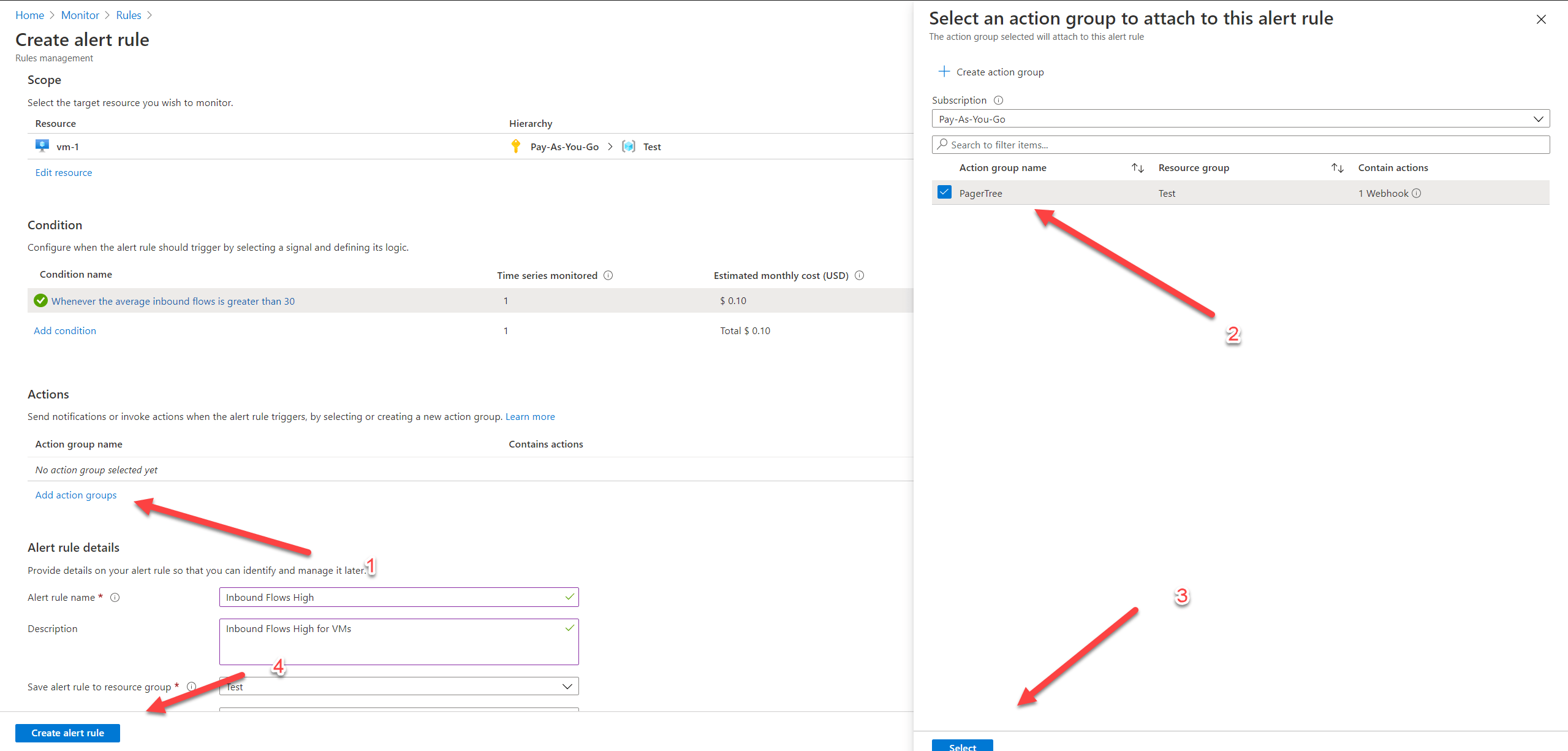

    2. In the Create Alert Rule form, do the following:

      1. Select the Scope (resource) to monitor

      2. Select the Condition to Fire an alert on

      3. Under the Actions select the PagerTree Action Group, click Select

      4. Add the Alert Rule Details

      5. Click Create Alert Rule


You have successfully completed the Azure Monitor Integration.


Microsoft Corporation
view
v3.rb
Azure Monitor
Azure
Create the integration
Copy the Endpoint URL
Navigate to Azure Monitor
Navigate to the Alerts tab.
Click the Manage actions tab.
Click the Add action group button.
Create the action group in Azure Monitor
Configure the action to be a webhook pointing to your PagerTree endpoint URL.
Click the Manage alert rules tab.
Click the New alert rule button.
Configure the Azure Monitor Alert Rule to perform the PagerTree action.
 Azure Monitor
Azure Monitor Alerts
Azure Monitor Manage Actions
Azure Monitor Manage Actions
action group in Azure Monitor
webhook pointing to your PagerTree endpoint URL
Azure Monitor Manage alert rules
Manage alert rules
 Azure Monitor Alert Rule to perform the PagerTree action.
