Connect your Stackdriver alerts to PagerTree.
Estimated Time
Vendor Docs
Open Source
5 minutes

What is Stackdriver?

Stackdriver aggregates metrics, logs, and events from infrastructure, giving developers and operators a rich set of observable signals that speed root-cause analysis and reduce mean time to resolution (MTTR).

How It Works

Stackdriver triggers alerts when monitoring policies are breached.
  • When an alert is Open (incident.state == 'open') in Stackdriver, an alert is created in PagerTree automatically.
  • When an alert is Closed (incident.state == 'closed') in Stackdriver, the alert is resolved in PagerTree automatically.

Integration Walkthrough

In this integration tutorial we will show you how to send alerts from Stackdriver into PagerTree. The estimated time for this integration is 5 minutes. We assume that you already have a PagerTree and Stackdriver account setup.

In PagerTree

  1. 1.
    Create the integration by clicking the Stackdriver logo.

In Stackdriver

  1. 1.

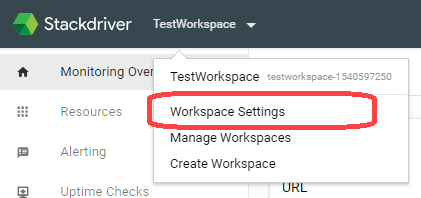

    From the top navigation menu click [Workspace Name] -> Workspace Settings.
    Navigate to Workspace settings.
  2. 2.
    From the Settings Page
    1. 1.

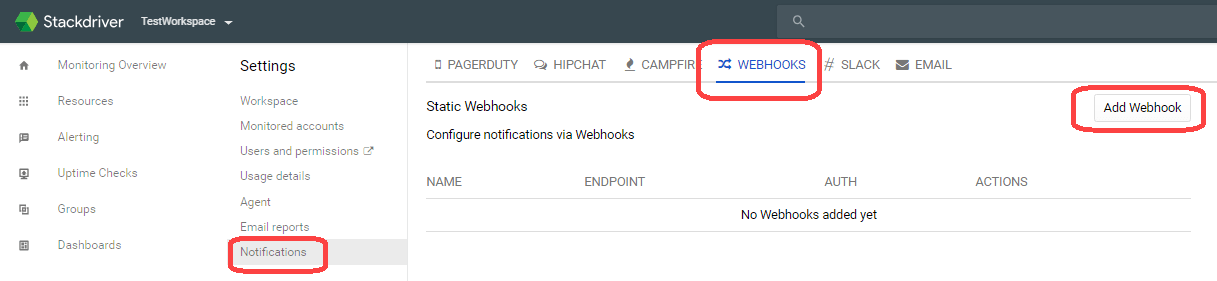

      Select Notifications -> Webhooks.
    2. 2.
      Click the Add Webhook button.
      Click the add webhook button.
      1. 1.
        Endpoint URL - Paste the PagerTree Endpoint URL you copied earlier
      2. 2.
        Webhook Name - Name the webhook appropriately (e.g. “PagerTree Webhook”)
      3. 3.
        Click Test Connection
      4. 4.
        Click Save

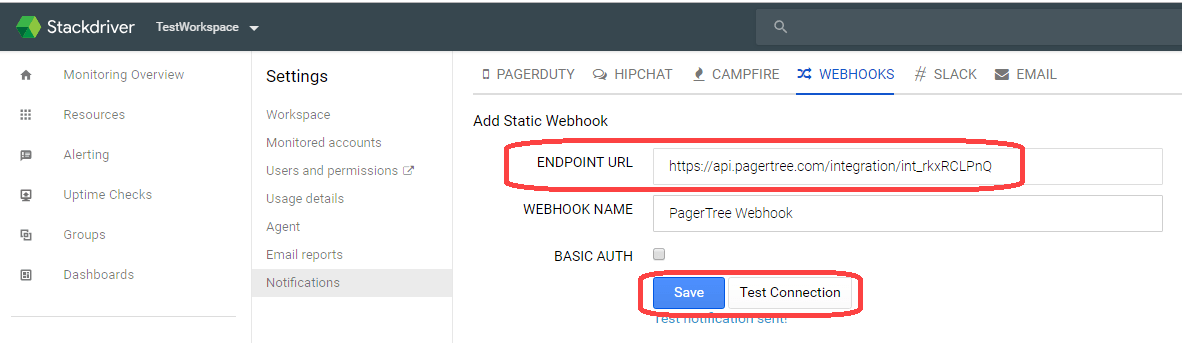

        Stackdriver PagerTree Webhook Configuration
  3. 3.

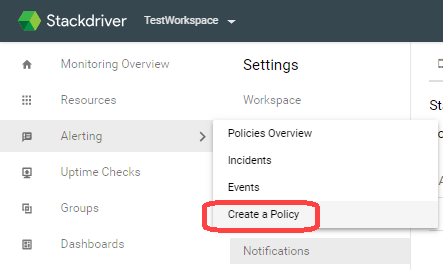

    From the left navigation menu click Alerting -> Create a Policy

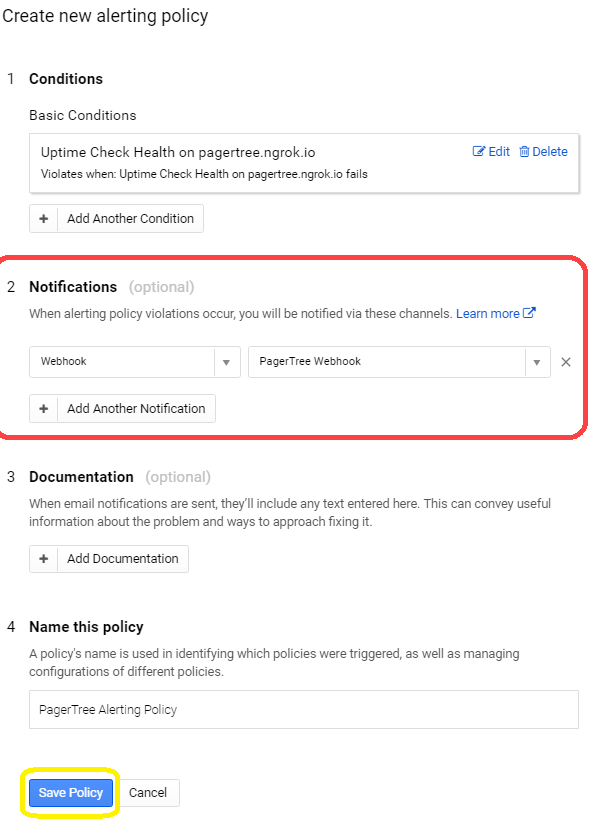

    Create an alerting policy.
    1. 1.
      Conditions - Select conditions for when this alerting policy will be breached
    2. 2.
      Notifications - Select the type Webhook and then select the PagerTree Webhook we created earlier.
    3. 3.
      Name this policy - Give an appropriate name (e.g. PagerTree Alerting Policy)
    4. 4.
      Click Save Policy.
      Set the notification policy to notify the PagerTree webhook.

You have successfully completed the Stackdriver Integration.
