  1. Integration Guides

ServerGuard24

Connect your ServerGuard24 monitors to PagerTree.

PreviousSentryNextSite24x7

Last updated 1 year ago

Was this helpful?

Company
Estimated Time
Vendor Docs
Open Source

5 minutes

What is ServerGuard24?

provides server and website monitoring.

How It Works

ServerGuard24 triggers notifications when a problem is detected.

  • When monitor is down (check_result == "CRITICAL") in ServerGuard24, an alert is created in PagerTree automatically.

  • When a monitor is up (check_result == "OK") in ServerGuard24, the alert is resolved in PagerTree automatically.

Integration Walkthrough

In this integration tutorial we will show you how to send notifications from ServerGuard24 into PagerTree. The estimated time for this integration is 5 minutes. We assume that you already have a PagerTree and ServerGuard24 account setup. It is also assumed you have created at least 1 ServerGuard24 monitor.

In PagerTree

  1. by clicking the ServerGuard24 logo.

  2. .

In ServerGuard24

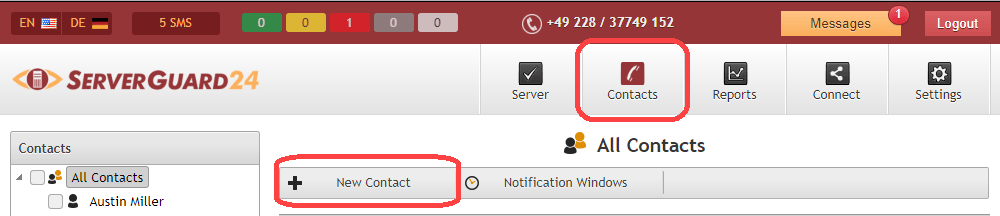

  1. Menu -> Contacts -> Create New Contact.

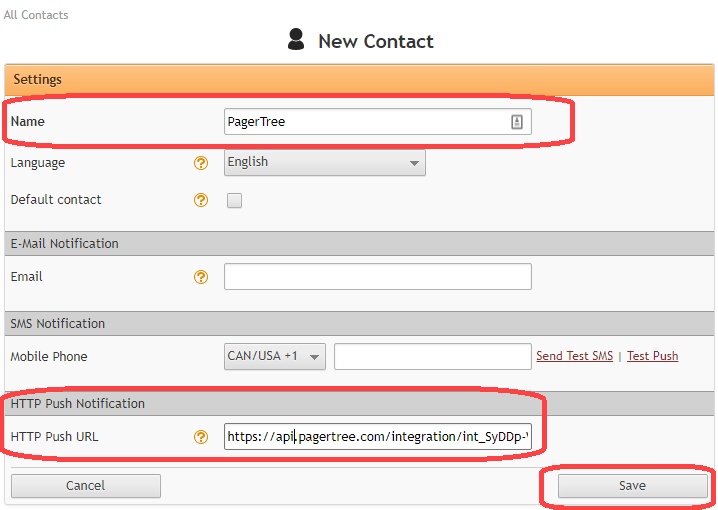

  2. On the New Contact Page:

    1. Name - PagerTree

    2. HTTP Push URL - Paste the PagerTree Endpoint URL you copied for URL.

    3. Click Save.

  3. Select a check from the Server Tab.

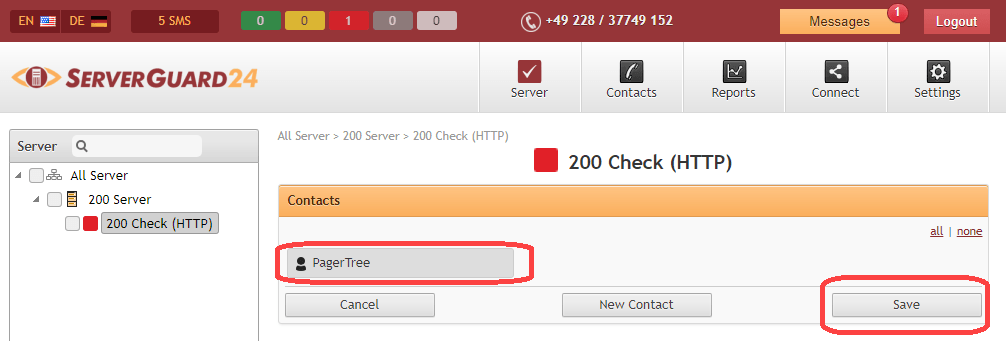

  4. Edit the Contacts section:

    1. Select PagerTree as a contact, and click Save.

    2. Click Save.

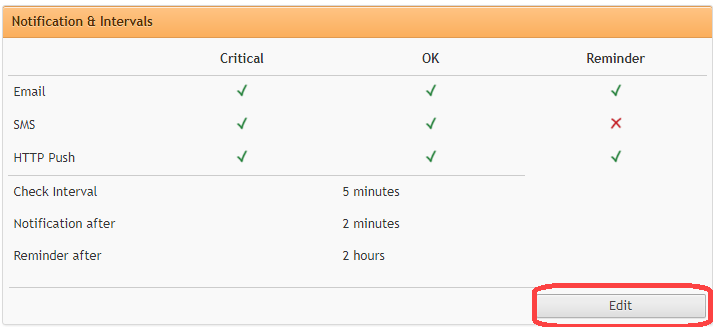

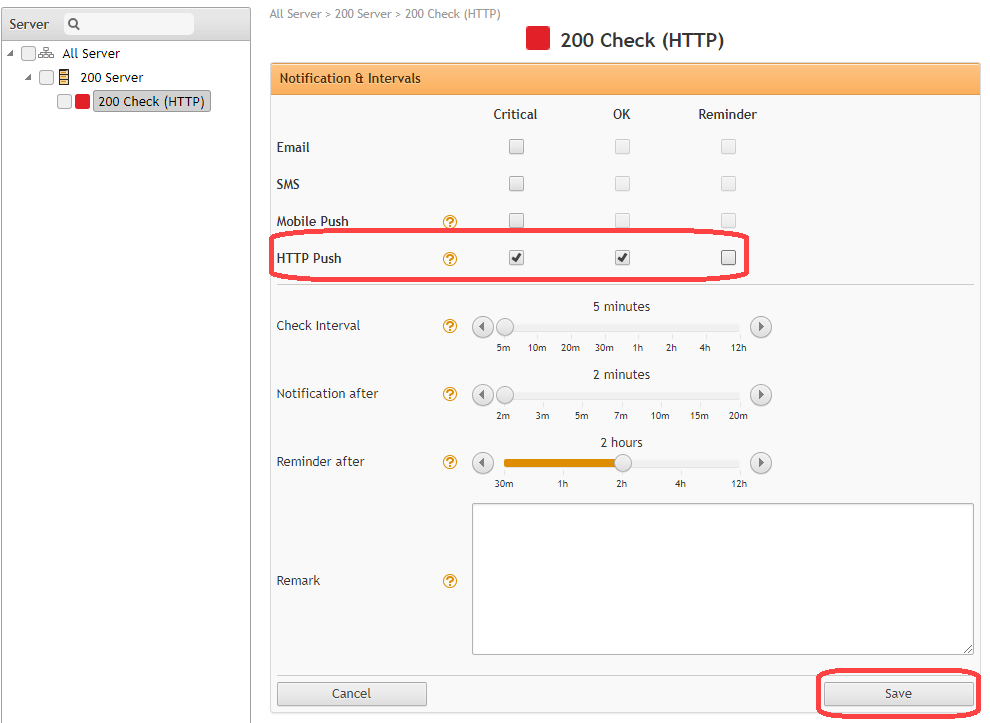

  5. Edit the Notification Settings:

    1. Click Edit on the Notification & Intervals sections.

    2. De-select Email, SMS, Push.

    3. HTTP Push - select Critical and OK.

    4. Click Save.


You have successfully completed the ServerGuard24 Integration.


IT75 GmbH & Co. KG
v3.rb
ServerGuard24
Create the integration
Copy the Endpoint URL
Click Create New Contact Button
Configure the new contact to have a HTTP push URL of the PagerTree Endpoint URL.
Edit the check.
Attach PagerTree as a contact.
Edit the Notification & Intervals section.
Select HTTP Push for Critical and OK.
ServerGuard24 New contact button
ServerGuard24 pagertree endpoint
ServerGuard24 Edit Check
ServerGuard24 PAgerTree
Edit the Notification & Intervals section.
Select HTTP Push for Critical and OK.
